J63A Series Glass-to-metal Sealed Connectors
• The product is a hermetically sealed electrical socket utilizing glass dielectric material, designed with 0.635mm contact pitch and gold-plated finish over the entire socket assembly.
Category:
key word:
connector
Details
Product Features
• The product is a hermetically sealed electrical socket utilizing glass dielectric material, designed with 0.635mm contact pitch and gold-plated finish over the entire socket assembly.
• Available in 9 standardized configurations with 9、15、21、25、31、37、51、65、69 cores.
• With exceptional sealing performance, the air leak rate of is 1.0x 10-3Pa . cm³/s.
• This series features a compact structure, and excellent vibration and impact resistance;
• Contact terminations are optimized for gold wire bonding, while also accommodating manual soldering of AFR-250-0.035m² cables.
Technical Features
| Ambient temperature | -55°C ~ 125°C | Vibration | 196m/s² |
|---|---|---|---|
| Contact resistance | ≤21mΩ | Dielectric withstanding voltage | 250V |
| Insulation resistance | ≥5000MΩ@100VDC | Durability | 500 cycles |
| Rated current | 1A | Impact | 10 ~ 2000Hz，980m/s² ,6ms |
| Random vibration | Power spectral density: 0.4G²/Hz, total acceleration rms: 23.1G |

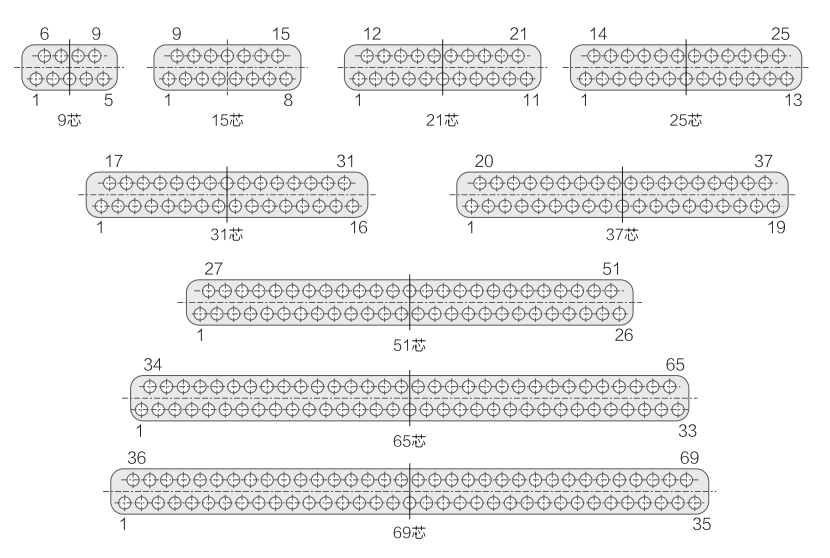

Pin arrangement
In modern electronic systems, reliable sealing and stable signal transmission are critical for equipment operating in extreme environments. The J63A Series Glass-to-metal Sealed Connectors are designed with advanced glass-to-metal sealing technology, providing excellent airtight performance, electrical reliability, and long-term durability. These connectors are widely used in aerospace, medical devices, vacuum equipment, sensors, and high-end industrial applications where safety and precision are essential.
The major advantage of the J63A Series Glass-to-metal Sealed Connectors is their ability to maintain stable performance under pressure, temperature changes, and harsh operating conditions. By combining high-quality metal materials with reliable glass sealing structures, the J63A Series Glass-to-metal Sealed Connectors effectively prevent gas leakage, moisture penetration, and electrical failures. This helps customers reduce maintenance requirements, improve product lifespan, and achieve higher system reliability.
For example, manufacturers of precision instruments and electronic control systems can use the J63A Series Glass-to-metal Sealed Connectors to ensure secure connections in critical environments. Whether installed in vacuum chambers, medical equipment, or industrial sensors, these connectors provide consistent electrical performance and strong environmental protection. They solve common challenges such as unstable connections, poor sealing, and limited durability in traditional connector solutions.
Choosing a professional J63A Series Glass-to-metal Sealed Connectors supplier allows customers to receive customized specifications, strict quality control, and dependable manufacturing support. With excellent sealing technology and precision design, the J63A Series Glass-to-metal Sealed Connectors deliver safe, efficient, and durable connection solutions, helping global industries build more reliable and advanced equipment.
