J80 Series Straight Plug Adapter Socket
This series features a flexible crown spring socket, making it user-friendly to plug and pull. This series is designed with both straight plug adaptation and anti-misplug functions.
Category:
key word:
connector
Details
Product Features
• Core count: 96
• This series features a flexible crown spring socket, making it user-friendly to plug and pull.
• This series is designed with both straight plug adaptation and anti-misplug functions.
• Contact pitch: 2 × 2.
• Specification: GJB 1438-1992.
Technical Features
| Ambient temperature | -55°C ~ 125°C | Vibration | 10Hz ~ 2000Hz, acceleration 196m/s² |
|---|---|---|---|
| Contact resistance | ≤10mΩ | Dielectric withstanding voltage | 1000V |
| Insulation resistance | ≥5000MΩ | Durability | 1000 cycles |
| Impact | 980m/s² | Mating force and unmating force | ≤60N |
| Operating current | 3A |

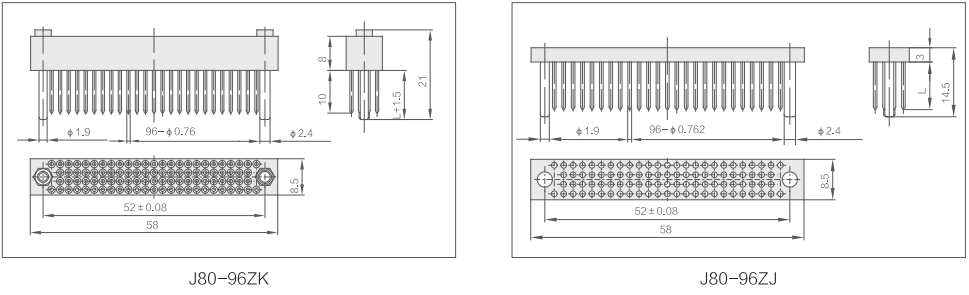

Pin arrangement
| Product Model | J80-96ZK | J80-96ZK1 | J80-96ZK2 | J80-96ZK3 | J80-96ZK4 | J80-96ZK5 |
|---|---|---|---|---|---|---|
| Pin length (L) | 10 | 4 | 11 | 24 | 3 | 17 |
| Product Model | J80-96ZK6 | J80-96ZK7 | J80-96ZK8 | J80-96ZK9 | J80-96ZK10 | J80-96ZK11 |
| Pin length (L) | 14 | 13 | 9.5 | 16.5 | 14.6 | 6.3 |
| Product Model | J80-96ZK12 | J80-96ZK13 | J80-96ZK14 | J80-96ZK15 | J80-96ZK16 | |
| Pin length (L) | 20.5 | 19 | 21 | 5 | 9 | |
| Product Model | J80-96ZJ | J80-96ZJ1 | J80-96ZJ2 | J80-96ZJ3 | J80-96ZJ4 | J80-96ZJ5 |
| Pin length (L) | 10 | 15 | 13 | 17 | 11 | 7 |
| Product Model | J80-96ZJ6 | J80-96ZJ7 | J80-96ZJ8 | J80-96ZJ9 | J80-96ZJ10 | J80-96ZJ11 |
| Pin length (L) | 8 | 9.5 | 16.5 | 7.5 | 9.3 | 20.5 |
| Product Model | J80-96ZJ12 | J80-96ZJ13 | J80-96ZJ14 | |||
| Pin length (L) | 13.5 | 9 | 14.5 |
