J30JH Series Micro Rectangular Electrical Connectors
Termination Variants: The product offers multiple termination, styles including wire-wrap, solder cup, vertical PCB mount, and right-angle PCB mount. The 24# contacts is designed with twist pins and contact pairs with rigid sockets, ensuring high contact reliability and excellent vibration resistance.
Category:
key word:
connector
Details
Product Features
• This series is compatible with ArBorn M-Series and ITT Cannon MDM-Series interfaces.
• Contact pitch: 1.27 mm; row spacing: 1.1 mm, with high contact density;
• With standard and comprehensive pin arrangement, this series is available in 10 pin arrangements, including 9, 15, 21, 25, 31, 37, 51, 69, and 100 cores, and 5-core power supply;
• Termination Variants: The product comes with multiple termination styles, including wire-wrap, solder cup, vertical PCB mount, and right-angle PCB mount）
• This series features a compact structure, light weight, high contact density, and a high degree of standardization;
• The 24# contacts is designed with twist pins and contact pairs with rigid sockets, ensuring high contact reliability and excellent vibration resistance.
Technical Features
| Rated current | 3A、13A | Contact resistance | ≤10mΩ；500VDC |
|---|---|---|---|
| Dielectric withstanding voltage | 800V | Insulation resistance | ≥5000MΩ |

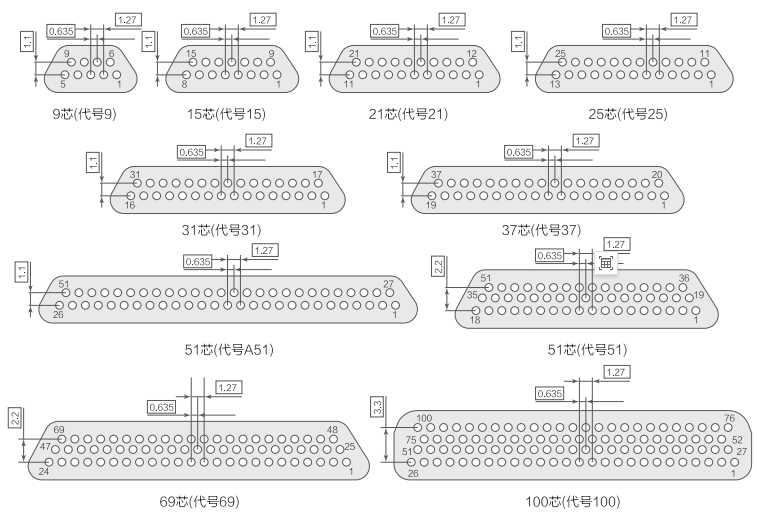

Pin arrangement
Note: When viewed from the plug mating side, the socket mating end is symmetrically aligned with its left and right sides.
